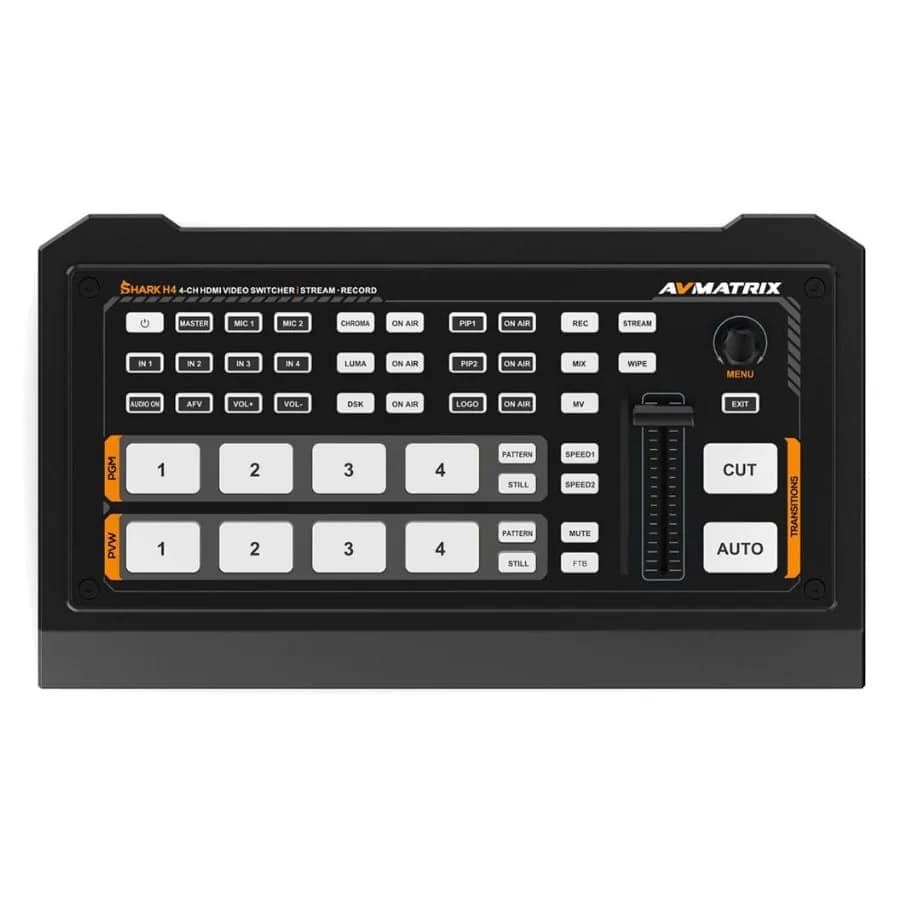

AVMATRIX Shark H4 | 4-Channel HDMI Switcher & Recorder | 1080p60 Multiview & Streaming

Details

The AVMATRIX Shark H4 is a powerful and compact 4-channel HDMI video switcher designed for live production, streaming, and recording. With four HDMI inputs, dual HDMI program outputs, plus a dedicated multiview output and USB-C capture, it delivers all-in-one versatility. Built-in support for RTMP/SRT streaming and direct recording to USB or SD card makes it perfect for conferences, live events, houses of worship, or remote content creation. This device also includes professional features such as PIP/POP layouts, luma and chroma keying, logo overlays, audio mixing, and transition effects (wipe, mix, dip). Control it via physical buttons, an included T-bar, or over LAN for remote operation.  Key Features Supports 4 auto-detected HDMI inputs (up to 1080p60) Outputs: 2× HDMI PGM, 1× HDMI multiview, 1× USB-C capture/stream Built-in RTMP/SRT streaming plus USB-A / SD card recording Audio mixer: embedded HDMI + 2-channel mic/line in, with audio delay Upstream keys: Luma key, Chroma key, dual PIP or POP layouts Downstream key: DSK + logo overlay Effects & transitions: T-Bar, AUTO, CUT, plus WIPE (11×3 patterns), MIX, DIP Media library: 39 built-in patterns, 16 imported images, 16 captured images, 2 color generators Fully configurable settings and scene recall with LAN/IP control
