AVMATRIX Shark S4 | 4-Channel SDI/HDMI Switcher & Recorder | Streaming & Multiview

Details

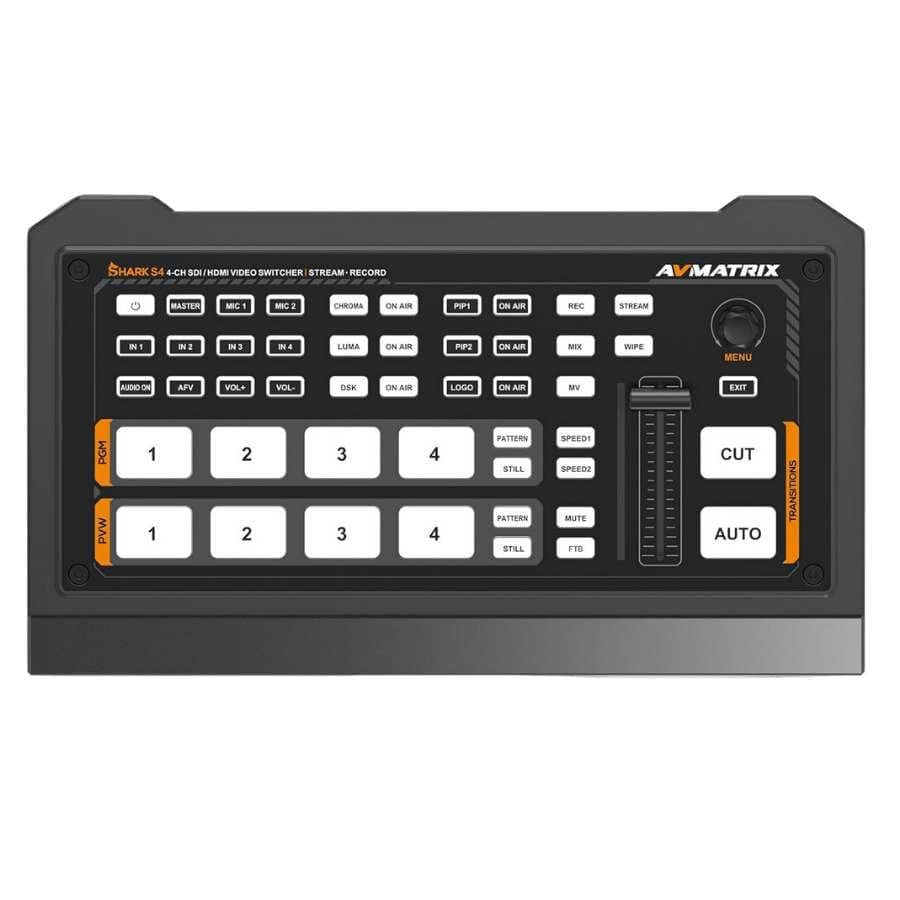

The AVMATRIX Shark S4 is a compact and powerful 4-channel video switcher designed for live production, streaming, and recording. It supports 2 × HDMI and 2 × 3G-SDI inputs, allowing seamless mixing of multiple camera types. Outputs include dual HDMI Program, HDMI multiview, and USB-C capture/stream. Built for flexible workflows, the Shark S4 offers RTMP/SRT streaming, USB/SD-card recording, and an integrated 2-channel audio mixer with analog mic/line input and embedded audio support. Control the unit via front buttons, T-Bar, or over LAN/IP for advanced configuration. Ideal for conferences, streaming events, worship services, and mobile production setups.  Key Features 2 × 3G-SDI and 2 × HDMI inputs (auto-detected) Outputs: 2 × HDMI Program, 1 × HDMI Multiview, USB-C capture/stream Streaming via LAN (RTMP, RTMPS, SRT) and local recording to USB/SD (Up to 1080p60 @ up to 32 Mbps) 2-channel audio mixer: embedded HDMI + SDI audio and analog mic/line inputs with delay adjustment Advanced keying: Luma Key, Chroma Key, dual PIP/POP layouts; downstream logo and DSK overlays Flex transitions: T-Bar, CUT, AUTO; effects include WIPE, MIX, DIP, and still/mute functions Media library: includes 39 built-in patterns, support for imported images, captured stills, and color generators Control via push buttons, T-Bar, or web-based LAN/IP interface for remote operation
