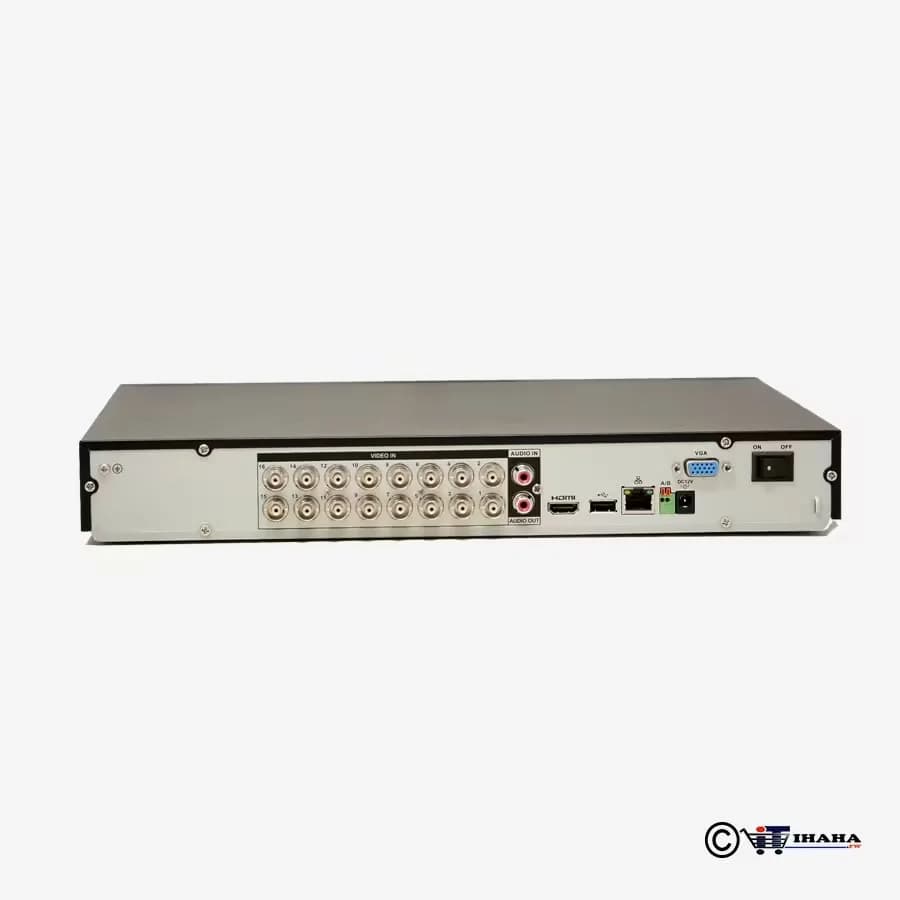

Dahua XVR4216AN-I 16 Channels Penta-brid 720P 1U 2HDDs WizSense Digital Video Recorder

Details

https://www.youtube.com/watch?v=Qkms9iBrqw0   SPECIFICATION     System Main Processor Industrial-grade processor Operating System Embedded Linux Operating Interface Web; Local GUI SMD Plus SMD Plus by Recorder 8-channel: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change Audio and Video Analog Camera Input 16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured. Camera Input 1. CVI: 1080p@ 25/30 fps, 720p@25/30 fps 2. TVI: 1080p@ 25/30 fps, 720p@25/30 fps 3. AHD: 1080p@ 25/30 fps, 720p@25/30 fps 4. CVBS: PAL/NTSC IP Camera Input Up to 18 channels of IPC access 2 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP channels are added beyond the existing channels,the AI Function(SMD) will be disabled. Encoding Capacity Main Stream: the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/CIF (1 fps–25/30 fps) Sub steram: CIF (1 fps–7 fps) Dual-stream Yes Video Bit Rate 32 kbps–6144 kbps Audio Sampling 8 kHz, 16 bit Audio Bit Rate 64 kbps Video Output 1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Multi-screen Display 1/4/8/9/16 Third-party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung Compression Standard Video Compression AI Coding; H.265+; H.265; H.264+; H.264 Audio Compression G.711a; G.711u; PCM Network Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P Mobile Phone Access iOS; Android Interoperability ONVIF 21.06; CGI Conformant Browser Chrome IE9 or later Firefox Network Mode Single-address mode Recording Playback Record Mode General, motion detection, alarm Recording Playback 1/4/9/16 Backup Method USB device and network Playback Mode Instant playback, general playback, event playback, tag playback Alarm General Alarm Motion detection, video loss, tampering Anomaly Alarm No disk, disk error, low space, offline, ip conflict, MAC conflict Alarm Linkage Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email Ports Audio Input 1-channel RCA 16-channel BNC (Coaxial Audio) Audio Output 1-channel RCA Two-way Talk Yes (share the same audio input with the first channel) HDD Interface 2 SATA ports, up to 16 TB. The maximum HDD capacity varies with environment temperature. RS-485 1 port, for PTZ control USB 2 USB ports (USB 2.0) HDMI 1 VGA 1 Network Port 1 (10/100 Mbps Ethernet port, RJ-45) General Power Supply 12 VDC, 4 A Power Consumption <10 W Net Weight 1.61 kg (3.55 lb) Gross Weight 2.86 kg (6.30 lb) Product Dimensions 375.0 mm × 289.4 mm × 53.0 mm (14.76" × 11.39" × 2.09") (W × D × H) Packaging Dimensions 433.0 mm× 366.0 mm × 141.0 mm (17.05" × 14.41" × 5.55" ) (W× D× H) Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F) Operating Humidity 0%–90% (RH) Installation Desktop Certifications FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024
